CHARACTERISTIC

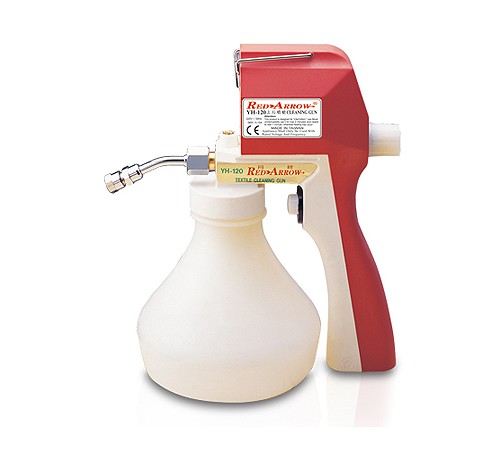

The YH-120 textile spot cleaning gun is an electric tool that removes localized fabric stains using high-pressure spray. It injects cleaning solution into the stained area and forces contaminants out more efficiently than traditional methods.
It is specially designed for removing stains and dirt from knitted fabrics, garments, suits, and industrial machinery components, delivering precise and efficient cleaning without damaging the material. The industrial spot cleaning gun is widely used in: • Garment manufacturing factories • Screen printing workshops • Textile finishing and QC lines • Laundry services and repair stations Compared to traditional manual cleaning methods, it significantly enhances cleaning efficiency, reduces labor costs, and ensures more consistent and professional results across large-scale production

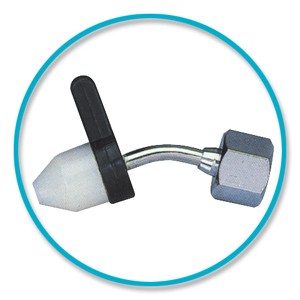

YH-20A / Adjustable Nozzle Head
The nozzle head of “YH-120 Red Arrow Spray Gun” is replaceable by YH-20A Adjustable Nozzle Head. With the function of YH-20A Adjustable Nozzle Head, the water out from the spray gun can be adjusted to either foggy way or straight way by just switching the trigger of the nozzle head.
The original nozzle head come together with the spray gun can only spray out water in straight way.
|

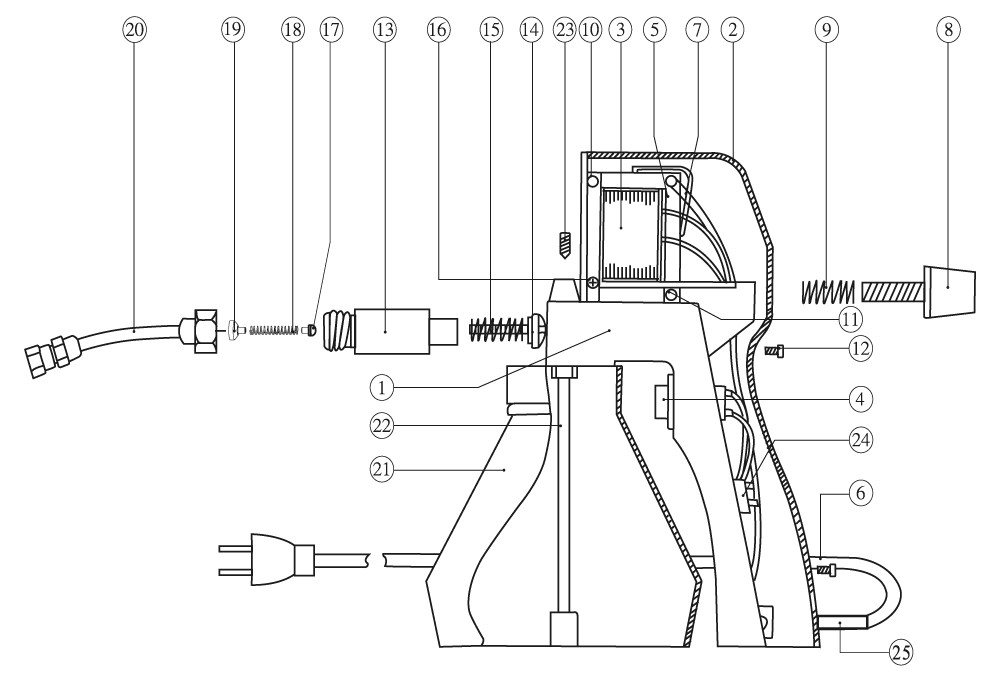

B-1-2 |
Gun Housing |
|
B-3 |
Electric Drive |
|
B-4 |
Trigger Switch |
|
B-5 |
Silicon Steel Plate |
|
B-6 |
Electric Lead |
|
B-7 |
Spring Plate |
|
B-8 |
Volume Control Knob |
|
B-9 |
Volume Control Spring |
|
B-10 |
BOLT A |
|
B-11 |
BOLT B |
|
B-12 |
Gun Unit Locking Screw |
|
B-13 |
Pump Cylinder |
|
B-14 |
Piston |
|
B-15 |
Piston Spring |
|
B-16 |
Gun Unit Locking Plate |
|
B-17~19 |
Delivery Valve Cone |
|
B-20 |
Flexible Nozzle Head |
|
B-21 |
CUP |
|
B-22 |
Suction Pipe |
|
B-23 |
Pump Unit locking Screw |
|
B-24 |
Terminal Block |
|
YH-20B |
Adjustable Nozzle Head |
| 1. | The proper spot removal by “shooting” the dirt out of the dirty subject should be carried out in a circular sweep, working from the outside towards the center. |
| 2. | The correct shooting distance from nozzle to the dirty surface is about 5~20cm. Bear in mind that the distance also alters by the density and the thickness of the object (example: fabric). |
| 3. |
The screw-button at the back side of the gun is used to control the pressure, which is adjusted into a perfect working position by specialized engineer before ex-factory; so it is strongly recommended customer not to adjust it by their self to prevent malfunction of the product. |
| 4. |
For extending the life of spray gun and not affecting the working efficiency, please maintain your spray gun by just several minutes after using. First, spray out the rest liquid, then take off the piston which near the nozzle head, and drop little nourish oil on it. |
| 5. |
If the spray gun is out of order, please detach and examine it according to the instruction menu attached. If the reason is oxidization, please remove it by using deoxidization paste, then drop little nourish oil on it. If the reason is damage of parts, we can supply all parts at reasonable price. Please indicate us the part No., we assure you of our best service at all times. |
