YH-170 textile cleaning gun delivers strong spot-cleaning spray for ink stains, oil marks, dust, and garment defects. Ideal for screen printing shops, textile factories, and laundry use.
The YH-170 textile cleaning gun is widely used for localized stain removal in textile and garment production. Common applications include: • Screen printing workshops for removing ink spots, overspray, and printing defects It makes the YH-170 a useful tool for factories that need to reduce garment waste, improve final product appearance, and handle small defects quickly during production.
• Garment factories for cleaning oil marks, dust, fingerprints, and handling stains
• Knitted fabric production for localized dirt removal before inspection
• Laundry and dry-cleaning operations for targeted stain treatment
• Textile finishing lines for quality control before packing
• Embroidery and sewing workshops for removing machine oil and production marks
YH-20A / Adjustable Nozzle Head

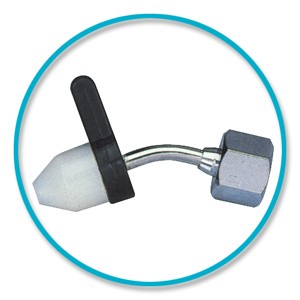

The nozzle head of “YH-170 Red Arrow SPRAY GUN” is replaceable by YH-20A Adjustable Nozzle Head. With the function of YH-20A Adjustable Nozzle Head, the water out from the spray gun can be adjusted to either foggy way or straight way by just switching the trigger of the nozzle head.
The original nozzle head come together with the spray gun can only spray out water in straight way.
|
B-1-2 |
Gun Housing |
|
B-3 |
Electric Drive |
|
B-4 |
Trigger Switch |
|
B-5 |
Silicon Steel Plate |
|
B-6 |
Electric Lead |
|
B-7 |
Spring Plate |
|
B-8 |
Volume Control Knob |
|
B-9 |
Volume Control Spring |
|
B-10 |
BOLT A |
|
B-11 |
BOLT B |
|
B-12 |
Gun Unit Locking Screw |
|
B-13 |
Pump Cylinder |
|
B-14 |
Piston |
|
B-15 |
Piston Spring |
|
B-16 |
Gun Unit Locking Plate |
|
B-17~19 |
Delivery Valve Cone |
|
B-20 |
Flexible Nozzle Head |
|
B-21 |
CUP |
|
B-22 |
Suction Pipe |
|
B-23 |
Pump Unit locking Screw |
|
B-24 |
Terminal Block |
|
YH-20B |
Adjustable Nozzle Head |
| 1. | The proper spot removal by “shooting” the dirt out of the dirty subject should be carried out in a circular sweep, working from the outside towards the center. |
| 2. | The correct shooting distance from nozzle to the dirty surface is about 5~20cm. Bear in mind that the distance also alters by the density and the thickness of the object (example: fabric). |
| 3. |
The screw-button at the back side of the gun is used to control the pressure, which is adjusted into a perfect working position by specialized engineer before ex-factory; so it is strongly recommended customer not to adjust it by their self to prevent malfunction of the product. |
| 4. |
For extending the life of spray gun and not affecting the working efficiency, please maintain your spray gun by just several minutes after using. First, spray out the rest liquid, then take off the piston which near the nozzle head, and drop little nourish oil on it. |
| 5. |
If the spray gun is out of order, please detach and examine it according to the instruction menu attached. If the reason is oxidization, please remove it by using deoxidization paste, then drop little nourish oil on it. If the reason is damage of parts, we can supply all parts at reasonable price. Please indicate us the part No., we assure you of our best service at all times. |
